LUX 350 – 370p slicer
Technical excellence
Scrolling
Carriage sliding on ball bearings
Progress
Product advancement with double trolley and anti-rejection mechanism
Components
Components in contact with the product can be completely dismantled
Sharpener
Built-in precision sharpener
Blade
Concave blade forged in chromed steel
Transmission
Poly-V belt transmission and automatic belt tensioner
Cutting system
Cutting selection from 0 to 24 mm with cam mechanism operated by a graduated knob
Optional and accessories
- Self-locking sausage clamping arm
- Energy saver system (auto power off) and piezo buttons
Product Gallery
Product Features

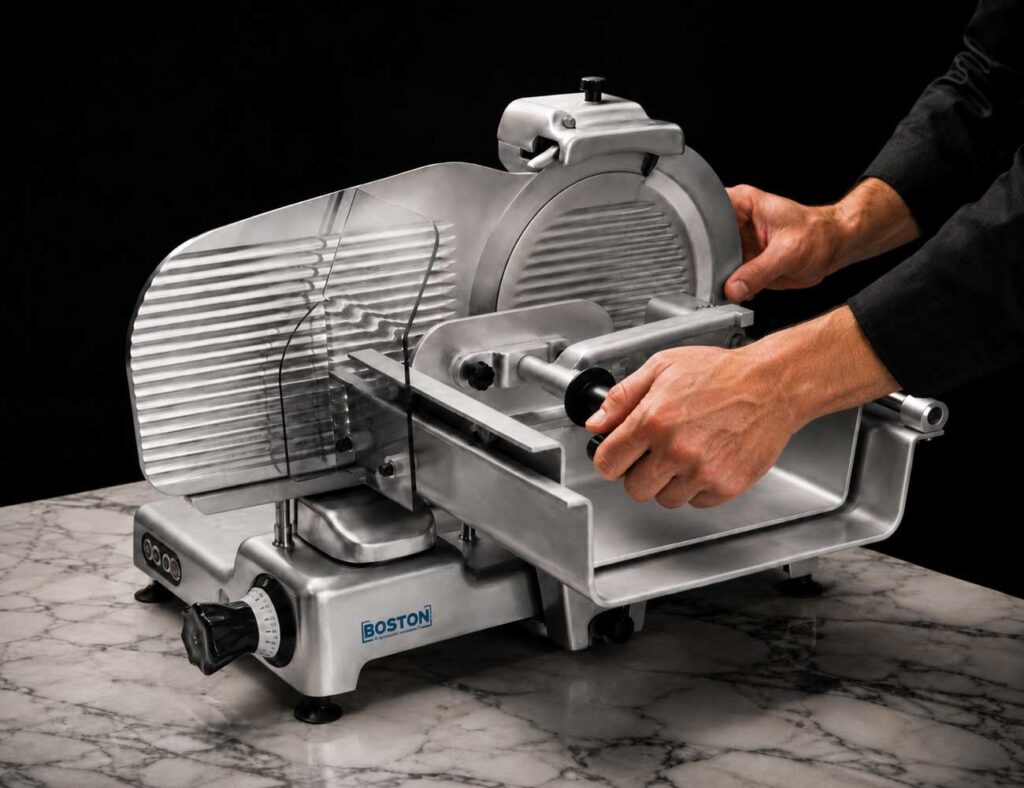

Anodized aluminum slicer designed to meet the highest standards of professional precision requested by supermarkets and delicatessens, stands out for its superior versatility in cutting. Characterized by a concave blade forged in chromed steel and from a Poly-v belt transmission with automatic belt tensioner, allows an extremely wide adjustment of the thickness, which ranges from 0 up to 24 mm through a precise cam mechanism.
Operational efficiency is ensured by the smooth sliding of the trolley on ball bearings and from the advancement with double trolley and anti-reject mechanism, which optimizes the yield of each piece by reducing waste to a minimum.
Ease of maintenance and hygiene are ensured by the components in contact with the food completely removable and the built-in sharpener, while on request it is possible to integrate the self-locking salami gripper arm and the advanced system energy saver with piezo buttons for intelligent energy control.
Data
tech
Quantifiable precision. Detailed specifications that define the product's industrial capabilities.
| Specification | LUX 350 | LUX 370 |
|---|---|---|
| Blade diameter | Ø 350 mm | Ø 370 mm |
| Cutting capacity | From 265 to 340 mm | From 270 to 340 mm |
| Cutting thickness | 0 - 24 mm | 0 - 24 mm |
| Engine power | 0.370 Kw - 2.1 A - 0.5 Hp | 0.370 Kw - 2.1 A - 0.5 Hp |
| Weight | 49 kg | 53 kg |

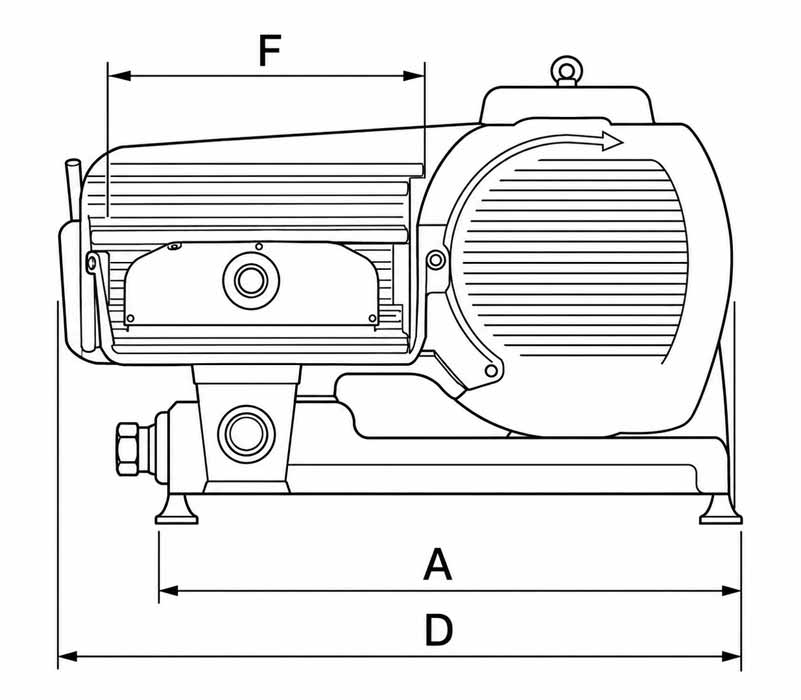

| Dimensions | A 600; B 430; C 570; D 715; E 630; F 320; G 320 | A 600; B 430; C 580; D 720; E 630; F 320; G 320 |
